NEW QUESTION # 19
Which document must be submitted with a tender, if the project requires bonding?
- A. Building Permit
- B. Consent of Surety
- C. Certificate of Recognition
- D. Certificate of Insurance
Answer: B
Explanation:
When tender documents require bonding (e.g., bid bond with subsequent performance and labour/material payment bonds), owners often require evidence at tender time that the bidder's surety will provide the required bonds if the bidder is awarded the contract. AConsent of Surety(also referred to as an "agreement to bond" in many procurement contexts) is a document issued by the surety confirming its commitment to issue the required bonds for the project upon award, subject to stated conditions. This is used specifically during the tendering process to demonstrate bonding capacity/availability tied to that bid. The other documents listed (COR, insurance certificate, building permit) may be required at various stages, but they do not serve as the tender-stage confirmation of surety support for bonding. Therefore, the required tender submission when bonding is required isConsent of Surety.
NEW QUESTION # 20
What does a system curve illustrate?
- A. The minimum radius at which a car can safely travel at 50 km/h
- B. The total head loss in a system of pipes as related to total flow
- C. The total fl as related to time
- D. The total length of the water mains as related to the water main diameter
Answer: B
Explanation:
Comprehensive and Detailed 150 to 200 words of Engineering documents and resources:
In pumped/pressurized pipe systems, thesystem curverepresents the hydraulic requirement of the piping network: the relationship betweenflow rate (Q)and thehead requiredto overcome elevation differences and losses. As flow increases, friction and minor losses rise (often approximately with Q² in turbulent flow regimes), so the system's required head increases with Q. This curve is used with a pump curve to find the operating point where pump head equals system head at a given flow. Standard civil engineering hydraulics references define head loss as a function of flow through friction and fittings, and system behavior is expressed by total head (static + losses) versus flow, which is exactly what the system curve shows.
Therefore, the system curve illustratestotal head loss (and required head) in the pipe system as a function of total flow, matching optionC.
NEW QUESTION # 21
A cologist is required to inspect the installation of a sanitary service pipe to confirm the slope. The technologist measures an elevation of 705.667 at the end of the service and 705.202 at the main. The horizontal measurement from the main to the end of the service is 22.10 m. What is the slope of the pipe?
- A. 2.1%
- B. 1.5%
- C. 2.5%
- D. 2.0%
Answer: A
Explanation:
Pipe slope is computed asrise (or fall) divided by run, expressed as a percent:
This matches standard civil engineering definitions of grade/slope as elevation change over horizontal distance.
Here, the elevation drop from the service end to the ma5.202 =0.465 m.
Horizontal distance (run) =22.10 m.
Slope = 0.465 / 22.10 = 0.02104 =2.104%, which rounds to2.1%.
This calculation reflects standard practice used in roadway and pipeline work for checking grades, confirming that installed utilities meet design slopes for gravity flow. The answer choice that matches the computed slope is2.1% (Option C).
NEW QUESTION # 22
Who is responsible for establishing and maintaining a system that is compliant with the Occupational Health and Safety Act in a workplace?
- A. Prime contractor
- B. Prime consultant
- C. General contractor
- D. Sub-contractor
Answer: A
Explanation:
On multi-employer construction work sites, Occupational Health and Safety frameworks commonly assign a coordinating duty to aprime contractor(or equivalent controlling entity) to ensure site-wide compliance. This role exists because multiple employers and subcontractors may be present, and safety responsibilities must be coordinated through one accountable system. Alberta's OHS guidance, for example, states that the prime contractor mustestablish and maintain a system or process that ensures compliancewith the Occupational Health and Safety Act, Regulation, and Code at the work site, including coordinating the health and safety activities of all employers. This does not remove duties from subcontractors or workers, but it makes the prime contractor the party responsible for the overarching compliance system (e.g., site safety plan, coordination, hazard controls, cooperation processes). Therefore, the correct answer isPrime contractor.
NEW QUESTION # 23
What is the bearing capacity of soil?
- A. Maximum concentrated load that soil can take under pressure
- B. Maximum pressure that soil can withstand without undergoing shear failure
- C. Highest pressure of force that foundation soil can withstand before crumbling
- D. Highest concentrated load applied to soil for maximum compaction
Answer: B
Explanation:
In foundation engineering, "bearing capacity" refers to themaximum bearing pressurethat soil can support under a foundationwithout a shear failure mechanismdeveloping in the ground, and (in allowable/safe terms) without causingexcessive settlement. In practice, design is based onallowable bearing capacity
/allowable bearing pressure, which is the net pressure (beyond overburden) that will not cause shear failure or excessive settlements, after applying an appropriate factor of safety. This concept is tied to classic bearing- capacity theories (e.g., Terzaghi) that predict shear failure along defined surfaces beneath a footing.
Therefore, the best definition among the options is the one referencingmaximum pressure without shear failure, not a "concentrated load," compaction, or "crumbling."
NEW QUESTION # 24
Which of the following is employee's responsibility in regard to PPE?
- A. Select PPE appropriate for the hazard.
- B. Receive training on the correct use of PPE.
- C. Inspect PPE before use.
- D. Ensure PPE is maintained correctly between uses.
Answer: C
Explanation:
Employee responsibilities for PPE typically includeusing PPE as required and checking it is serviceable before use, then reporting defects. Employer responsibilities generally include hazard assessment, selecting
/providing appropriate PPE, ensuring training, and maintaining a program. EM 385-1-1 reflects this division of duties: it requires PPE to be used to control exposures and establishes training requirements covering key aspects of PPE, includinginspection/testingand proper care. Practical safety guidance for workers also states that employees shouldcheck PPE for faults before useand report issues. Among the optionsuployee duty that is broadly applicable across PPE types and aligns with standard safety systems: workers verify their equipment is not damaged, fits correctly, and is suitable for the task before entering the hazard area.
Therefore, the correct answer isA.
NEW QUESTION # 25
A geotechnical report indicates the presence of a peat layer in several boreholes. The peat layer ranges in thickness from 450 mm to 1200 mm and is found at a depth of 1.5 m below the existing grade. How should this be addressed in the project specifications that are being prepared?
- A. Advise the bidders that the peat layer is present
- B. Determine the bearing strength of the peat material and include this information in the specifications
- C. Include a clause stating that the peat should be removed from the area
- D. Propose a method of stabilizing the peat layer in the specifications
Answer: C
Explanation:
Peat is a highly organic soil withvery high compressibility, low shear strength, and problematic long-term settlement behavior. If peat is present within the stress influence zone of foundations or slabs (here, relatively shallow at ~1.5 m depth), typical construction practice is to treat it asunsuitable materialunless a designed ground-improvement solution is explicitly adopted. When the geotechnical investigation identifies such material in advance, the project specifications should convert that known condition into aclear scope requirementso pricing and execution are defined-commonly by requiringover-excavation/removal and replacement with suitable compacted fillin affected areas, subject to engineer direction and limits. USACE guidance for earthworks/foundations explicitly states thatsoft or organic spots in the foundation should be removed and replaced with compacted materialas part of foundation preparation.
Therefore, the most appropriate way to address the identified peat in the specifications is toinclude a clause requiring peat removal(and replacement per spec), which isOption C.
NEW QUESTION # 26
What test should be used to determine the compressive strength of concrete?
- A. Slump test
- B. Cylinder test
- C. Air test
- D. Sieve test
Answer: B
Explanation:
Concrete compressive strength is determined by loading astandard molded specimento failure in a compression testing machine and calculating strength from the peak load divided by the specimen's cross- sectional area. The common acceptance specimen for cast-in-place concrete is acylinder, produced and cured using standardized procedures to ensure that test results reliably represent the delivered concrete. Civil engineering materials references describe compressive strength testing as the principal measure used to verify compliance with specified strength (f'c), and that cylinder specimens are tested in compression to determine the maximum stress sustained.
A slump test measures workability/consistency, an air test measures entrained air content, and sieve testing measures aggregate gradation-none of these directly measure compressive strength. Therefore, the required test for compressive strength is thecylinder test (Option B).
NEW QUESTION # 27
A contractor is using a compactor on a hot and dry day and quickly compacts a dry 300 mm thickness of sub- base without adding water. The soil is near optimum moisture. A civil engineering technologist completes compaction tests and finds that specifications have not been achieved. What should be done?
- A. Continue with base placement and compaction.
- B. Strip the sub-base down to sub-grade and import new material.
- C. Add water and re-compact.
- D. Re-compact and retest the soil.
Answer: D
Explanation:
Compaction acceptance is based on achieving specifiedin-place dry density(relative compaction) at an acceptable moisture range. If the material is alreadynear optimum moisture, failure to meet density typically points toinsufficient compactive effort,inadequate number of passes,improper equipment, orexcessive lift thickness(300 mm can be too thick for some sub-base and equipment combinations). Standard compaction theory shows that near OMC, soils should densify efficiently; if density is still low, the first corrective action is toincrease compactive effortand verify results with another field density test. Adding water when already near OMC may push moisture above optimum and can reduce achievable dry density.
Continuing with base placement would lock in a nonconforming layer, and stripping/importing new material is a last-resort remedy after reasonable rework attempts. Therefore, the best immediate corrective action is to re-compact and retest, adjusting lift thickness/passes as needed to meet specification.
NEW QUESTION # 28
The critical path refers to which of the following series of tasks in a schedule?
- A. eect
- B. Those that dictate the final cut and fills in a project
- C. Those that dictate the final cost of a project
- D. Those that dictate the start date of a project
Answer: A
Explanation:
The critical path is thelongest-duration paththrough a project network schedule and represents the sequence of activities withzero (or minimal) float. Because activities on this path have no schedule slack, any delay to a critical-path activity delays theproject completionunless mitigated (e.g., crashing, fast-tracking, resequencing). Standard project scheduling references define the critical path as the chain of tasks that determines theearliest possible finishdate; controlling and monitoring these tasks is essential for schedule management and forecasting. This is why contract administrators and project teams track critical activities and escalate risks affecting them-delivery delays, access constraints, approvals, and rework-because they directly move the completion milestone. Therefore, the critical path refers to tasks thatdictate the finish date of the project, which is optionA.
NEW QUESTION # 29
Which factor aggravates a freeze-thaw cycle and contributes to asphalt pavement deterioration?
- A. Compaction during construction
- B. Poor drainage
- C. Maximum aggregate size in the sub-base
- D. Type of oil in the asphalt
Answer: B
Explanation:
Freeze-thaw pavement damage is driven bywater presencein cracks/voids and repeated freezing and thawing. When water enters pavement cracks and freezes, it expands and worsens cracking; repeated cycles promote disintegration and pothole formation. Poor drainage increases theavailability and residence time of waterin the pavement structure, so more water can infiltrate cracks and remain trapped in layers, intensifying freeze-thaw action and accelerating deterioration. This mechanism is consistent with documented observations that water entering cracks, freezing, and thawing expands cracks and breaks bonding, leading to potholes and rapid local deterioration under traffic. Therefore, among the given choices, the factor that most directly aggravates freeze-thaw cycles and contributes to asphalt deterioration ispoor drainage.
NEW QUESTION # 30
Typically, what is the maximum time that concrete can be in a mixer truck before it is discharged?
- A. Under 2 hours
- B. 3-4 hours
- C. Over 4 hours
- D. 2-3 hours
Answer: A
Explanation:
Ready-mixed concrete must be placed and discharged within a controlled time window to ensure workability and performance are not compromised by slump loss, early setting, or excess mixing. Historically, widely used industry standards and guidance for ready-mixed concrete commonly referenced a90-minutedischarge limit (or equivalent revolutions limit) from the start of mixing to completion of discharge, unless otherwise specified by project requirements. A 90-minute rule falls clearly within "under 2 hours," making that option the best match to typical industry practice reflected in technical discussion and standards commentary. While some newer editions of ASTM C94 allow the purchaser and producer to establish a project-specific limit, the traditional default guidance that many practitioners associate with mixer-truck discharge remains well under two hours. Therefore, the correct selection among the provided options isUnder 2 hours.
NEW QUESTION # 31
Based on the diagram below, what is the percentage slope between D1 and C2 if the grid is 10 m × 10 m?
- A. 3.04%
- B. 5.73%
- C. 6.79%
- D. 8.10%
Answer: C
Explanation:
Percent slope is computed as:
This is the standard civil engineering definition of grade/slope used in surveying, drainage, and roadway work. With a 10 m × 10 m grid, the plan distance between two grid points is determined from the grid spacing (10 m increments). Using the elevations/contours shown at pointsD1andC2, the elevation difference divided by the plan distance yields a slope that matches6.79%. This corresponds to a rise/fall of roughly0.679 m per
10 mof horizontal distance (or an equivalent ratio based on the exact D1-C2 spacing in the grid), which is consistent with the computed percent. Therefore, the correct selection is6.79% (Option C).
NEW QUESTION # 32
A civil engineering technologist is working on a foundation design and needs to differentiate between different sections of a footing and the point where the vertical pressure is applied. In the diagram, what is represented by letters A, B, and C?
- A. A = Footing, B = Vertical pressure, and C = Pedestal
- B. A = Footing, B = Pedestal, and C = Vertical pressure
- C. A = Pedestal, B = Footing, and C = Vertical pressure
- D. A = Vertical pressure, B = Pedestal, and C = Footing
Answer: C
Explanation:
In shallow foundation terminology, thefootingis the widened base element that transfers loads to soil over a larger area to reduce bearing pressure, while apedestalis the short vertical element (often concrete) that supports a column or provides an interface between the column/base plate and the footing. Vertical load from the superstructure is shown as adownward forceapplied at the top of the pedestal/column location, representing thevertical pressure/loadtransmitted into the foundation system. In the diagram, letterBpoints to the large horizontal base element (the footing), letterApoints to the smaller vertical block above it (the pedestal), and letterCmarks the downward applied load. This matches standard foundation component identification used in structural and geotechnical detailing: pedestal above, footing below, and vertical load applied at the top of the pedestal/column line of action.
NEW QUESTION # 33
Why is it important to keep daily site diaries and inspection data, such as sketches, notes, and photos?
- A. To document daily activities on a construction site
- B. To justify daily expenses on a construction site
- C. To justify monthly expenses on a construction site
- D. To support monthly invoices
Answer: A
Explanation:
Daily site diaries and inspection records (notes, sketches, and photos) are maintained to create a contemporaneous, objective recordof what occurred on site each day-work activities, progress, site conditions, instructions, and issues encountered. These records are central to effective construction administration because projects routinely face differing site conditions, changes, and coordination issues that can lead to disputes if not documented. Construction-phase legal and contractual issues frequently arise from variability in site conditions and from variations/change orders that modify scope, schedule, and compensation; accurate daily documentation supports verification of events, quantities, delays, and corrective actions. Maintaining reliable daily records also supports tracking deficiencies and follow-up, confirming compliance observations, and providing traceability for decisions and communications. In civil systems construction, change orders are treated as formal contract modifications and disputes can be minimized by strong site investigation andthorough documentationof field realities and decisions.
NEW QUESTION # 34
A surveyor is laying out the invert elevations of a storm sewer. Centre elevation is 10 m, storm pipe outside diameter is 1 m, and storm sewer pipe wall thickness is 0.05 m. What is the storm sewer invert elevation in the diagram below?
- A. 6.55 m
- B. 6.50 m
- C. 6.75 m
- D. 7.00 m
Answer: A
Explanation:
Theinvert elevationis the elevation of theinside bottomof the pipe (flow line). To compute invert from a reference elevation, the key geometry is theinside radius(half the inside diameter). Given an outside diameter (OD) of 1.00 m and wall thickness of 0.05 m, the inside diameter (ID) is: ID = 1.00 # 2(0.05) =0.90 m, so inside radius =0.45 m. The diagram indicates the pipe is located such that thepipe centreline elevationis at
7.00 m(derived from the shown vertical offset from the 10.00 m center elevation to the pipe center). The invert is therefore: 7.00 # 0.45 =6.55 m. Civil references define invert as the interior bottom of the conduit and use inside radius/diameter relationships when converting from centreline to invert. Hence, the correct invert elevation shown by the diagram and pipe geometry is6.55 m.
NEW QUESTION # 35
Why is a builder's lien holdback important?
- A. To protect the owner when a contractor goes bankrupt
- B. To hold the contractor back from completing the job too quickly
- C. To protect the owner when a contractor does not pay the bills
- D. To protect the contractor from unscrupulous developers
Answer: C
Explanation:
A builder's lien holdback (often a statutory holdback such as 10% in many Canadian jurisdictions) is a payment amount withheld from progress payments to create afundthat can be used to satisfy lien claims if parties down the contracting chain (subcontractors, workers, suppliers) arenot paid. The intent is to protect the owner (and other payers) from having to "pay twice" for the same work: once to the contractor and again to unpaid lien claimants who can lien the project. Canadian construction lien frameworks describe holdbacks as a system designed to protect lien claimants while limiting the payer/owner's exposure by ensuring funds are available if unpaid claims arise. Practical explanations of holdbacks note that if a subcontractor or labourer is not paid, the holdback provides funds set aside to address those unpaid claims and associated lien risk. Therefore, the best answer is that the holdback protects theowner when the contractor does not pay the bills(i.e., unpaid subcontractors/suppliers can trigger liens).
NEW QUESTION # 36
Whatto determine the compressive strength of concrete?
- A. Slump test
- B. Cylinder test
- C. Air test
- D. Sieve test
Answer: B
NEW QUESTION # 37
Which of the following can a civil engineering technologist request from a concrete supplier to verify that concrete falls within municipal specifications?
- A. Geotechnical mix design
- B. Batch ticket from the plant
- C. Structural mix design
- D. Batch location
Answer: B
Explanation:
For ready-mixed concrete deliveries, compliance verification is commonly supported by thedelivery/batch ticket(often called the concrete delivery ticket). Industry guidance tied to ASTM C94 emphasizes that the ticket includes critical batch information (such as batch time and related data) used to confirm compliance with specified requirements and limits (including time limits for discharge and other production/traceability details). Because municipal specifications typically require confirmation of the delivered mix identification, quantities, admixtures, batching time, and other relevant production details, the batch/delivery ticket is the most direct document a technologist can request at the site to verify the delivered concrete aligns with the specified mix and placement requirements. A mix design submittal can show intended proportions but does not prove what was actually batched and delivered for that load; "batch location" alone is not sufficient;
"geotechnical mix design" is not applicable. Therefore, the correct item is thebatch ticket from the plant.
NEW QUESTION # 38

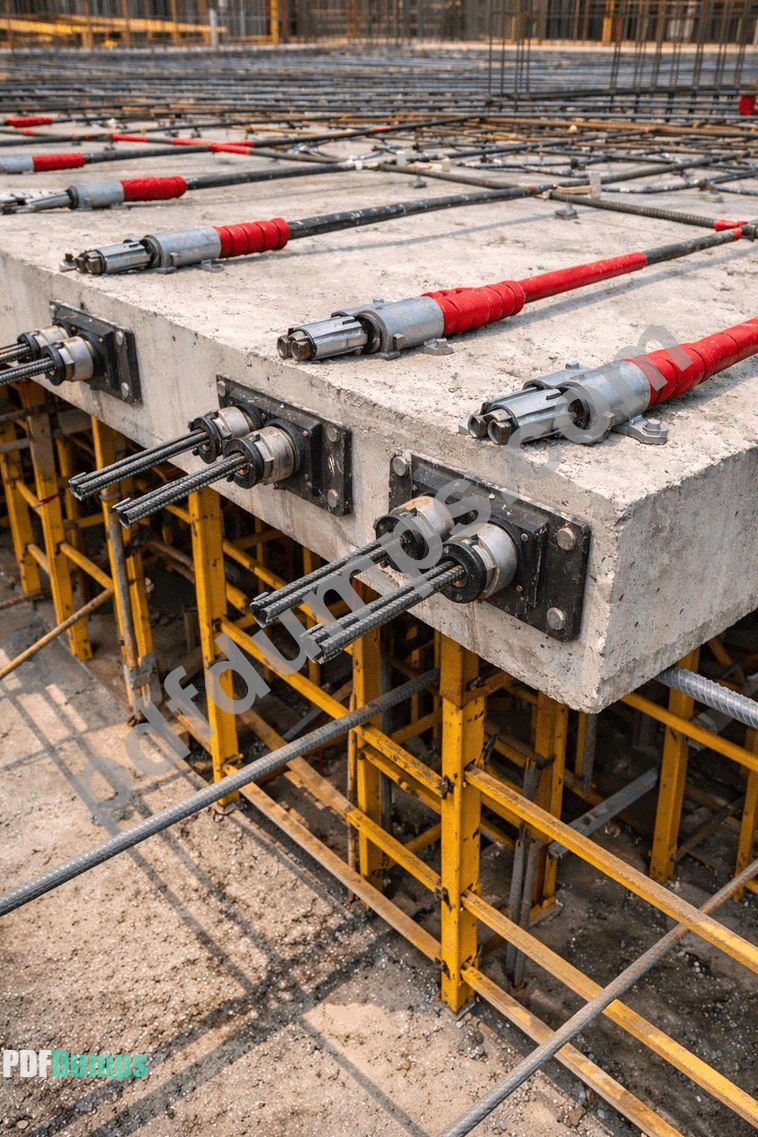

What type of concrete structural element is shown in the image below?
- A. Prestressed
- B. Post-tensioned
- C. Precast
- D. Cast in place
Answer: B
NEW QUESTION # 39

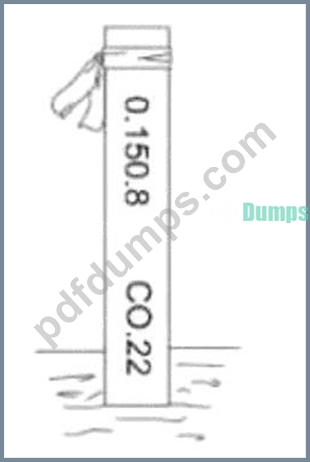

What type of survey stake is shown in the image below?
- A. A centreline stake
- B. A benchmark stake
- C. A grade stake
- D. A slope stake
Answer: A
Explanation:
Acentreline stakeis used to mark the roadway/control alignment in the field, typically at stations, and is identified by centreline-related notation rather than cut/fill or slope-to-daylight information. In the image, the stake is marked in a way consistent withcentreline stationing/control(as opposed to slope stakes, which typically include slope ratio, offset, and cut/fill to finished grade, or benchmark stakes, which serve as elevation control points). Standard construction staking guidance notes that stake markings communicate what line is being staked (e.g.,CL) and its relationship to stationing and control.
Because the stake is presented as a control point for alignment (centreline) rather than a grade/slope instruction, it is best classified as acentreline stake.
NEW QUESTION # 40
......
